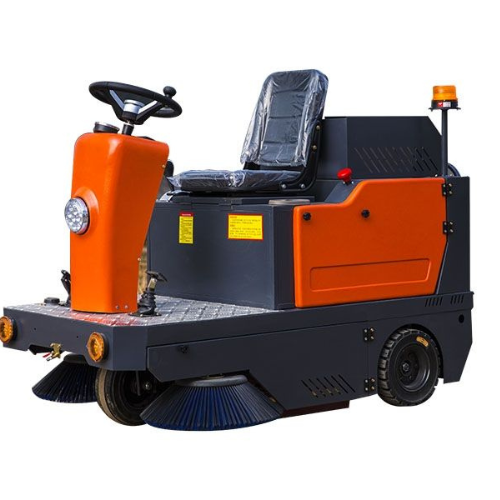

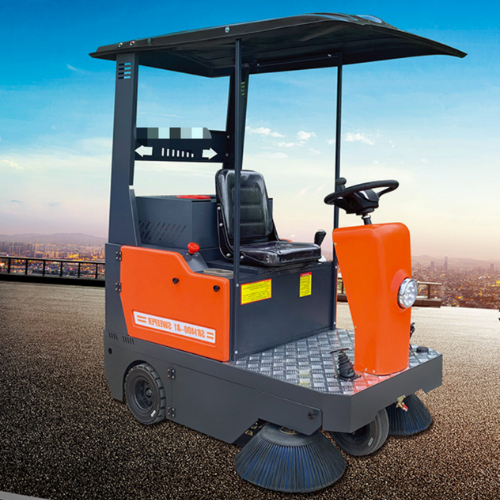

SR1400-A1 Road Sweeper

SR1400-A1

Small steering wheel driven three-wheel automatic sweeper

The ride-on sweeper is an all-in-one automatic cleaning machine that combines vacuuming, sweeping, and water spraying.

Performance Features

1. Equipped with a powerful dust control system, featuring a large filtration area and strong suction capability.

2. Integrated enlarged chassis ensures stable performance, high efficiency, and long machine lifespan.

3. Built-in large dust filtration system effectively suppresses dust; an electric dust-cleaning vibrator automatically removes dust from the filter.

4. High-pressure atomized spray system effectively prevents secondary dust emission.

5. User-centric design philosophy provides a safe and comfortable working environment.

6. Solid enlarged tires enhance the product's maneuverability.

7. Mature and high-quality electronic control system guarantees reliability and ease of operation.

8. Powered by a large-capacity maintenance-free battery, offering energy efficiency, environmental friendliness, and extended continuous operation.

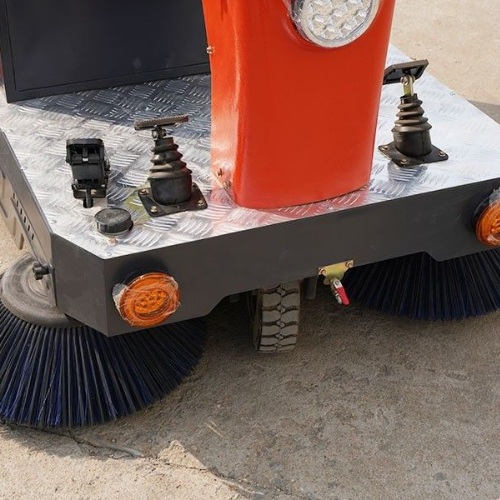

9. Both side brushes and main brush feature automatic lifting mechanisms for quick and convenient use.

Note: Parameter changes due to product modifications or upgrades will not be notified separately. We appreciate your understanding!

Technical Parameters

1. Product model: SR1400-A1

2. Shell material: Sheet metal baking paint

3. Number of brushes, fans and vibration dust: Main brush X1+side brush X2+fan x1+vibration dust x1

4. Walking and turning mode: Steering wheel

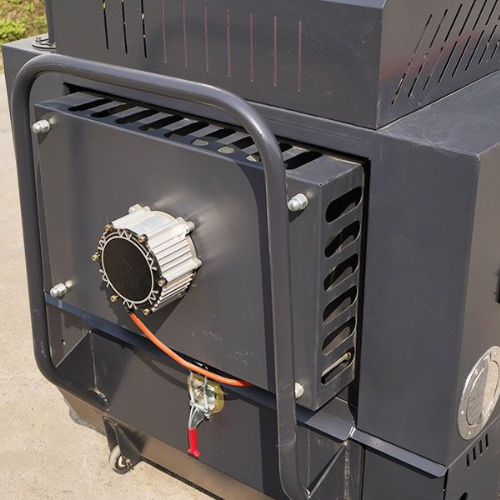

5. Drive mode: Pure electric rear wheel differential drive (DC asynchronous motor)

6. Braking method: Hydraulic dual disc brake

7. Power source: Optional 48V 52AH (4 pieces) or 48V 80AH (4 pieces)

8. Electric control circuit: National standard integrated waterproof wiring harness

9. Work control mode: Automatic control system, one click start

10. Battery charger: Equipped with intelligent charger

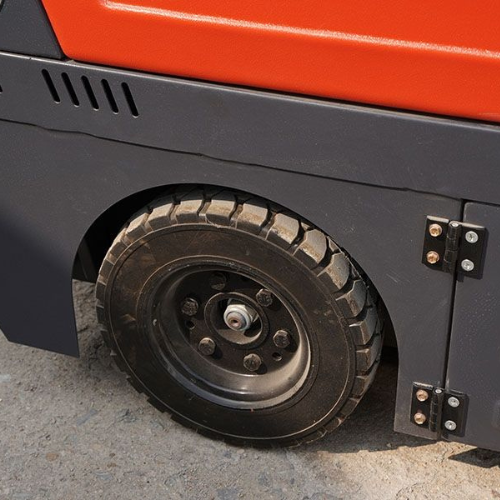

11. Tyre: Rubber solid tire

12. Cleaning width: ≤1,400mm

13. Work efficiency: ≤14,000 m²/h

14. Battery life: 3-6h

15. Climbing ability: 30%

16. Maximum working speed: 8km/h

17. Maximum driving speed: 20km/h

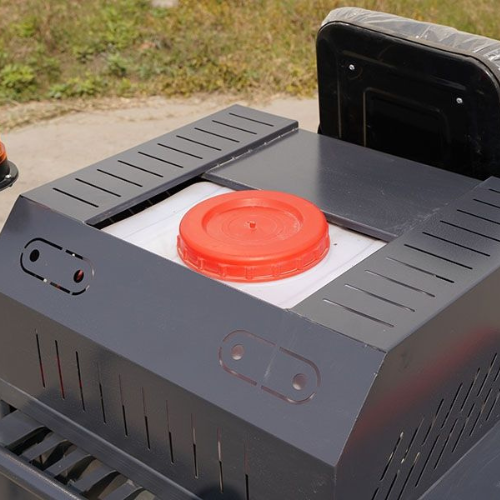

18. Water tank capacity: 40L

19. Garbage bin capacity: ≤160L

20. Edge brush diameter: 500mm

21. Main brush specifications: 600mm*300mm

22. Drive power: 1.2kw

23. Homework power: 680W (main brush)+500W (fan)+100W (vibration dust)+100W (edge brush) *2+50W (water pump)

24. Turning radius: 1200mm

25. Specification and size: Length*width*height=1800x1400x1350mm

26. Net weight of the machine: 460kg
