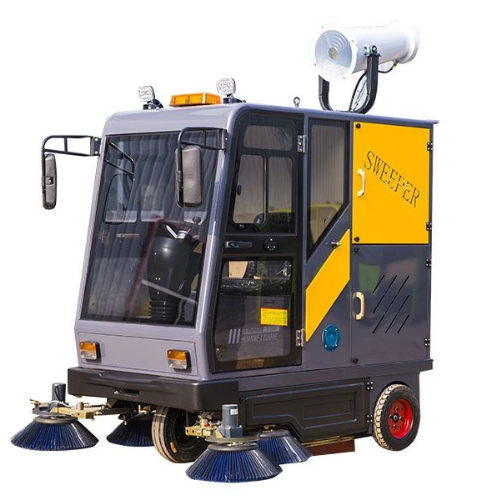

SRXS-A3PW Road Sweeper

SR/XS-A3PW Sweeper

1. Fully enclosed ride-on three-wheeled automatic sweeper with negative-pressure vacuum suction and integrated high-pressure washing

2. Fog-cannon model (SR/XS-A3PW) ride-on sweeper — negative-pressure vacuum suction automatic sweeper with integrated high-pressure washing

Performance Features

1. The drive system of this sweeper model utilizes a high-power 1.5kW DC asynchronous motor and a DC asynchronous intelligent controller. Its primary advantages include smooth startup, quiet operation, powerful performance, strong climbing capability, and a long service life, all of which contribute to an excellent user experience and enhanced ease of operation.

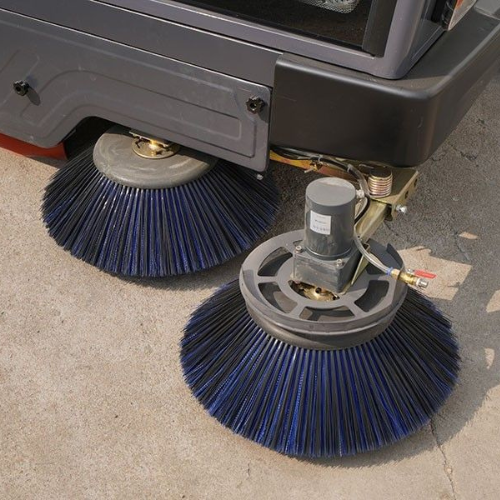

2. This vehicle features an integrated sweeping and vacuuming design. Four front-mounted side brushes are responsible for gathering debris from the sweeping path, while a central main brush sweeps and throws debris. It incorporates two sets of built-in high-power vacuum negative pressure dust collection systems, equipped with two 500W high-speed vacuum fans. Automatic dust collection is performed through two large-area filter elements, which can also be automatically cleaned with a single button. Combined with a high-pressure atomizing spray system, it effectively suppresses airborne dust and ensures a thorough cleaning of ground debris and dust.

3. This model also incorporates a high-pressure cleaning function, featuring a pure electric imported high-pressure plunger pump and an automatic hose reel that allows for a 10-meter high-pressure hose to be extended. The high-pressure system is equipped with standard quick connectors, enabling the use of various nozzles with different calibers and spray angles. A selection of nozzles is included with the machine.

Note: Parameter changes due to product modifications or upgrades will not be notified separately. We appreciate your understanding!

Technical Parameters

1. Product model: SR/XS-A3PW

2. Shell material: Sheet metal spray coating

3. Number of brushes, fans and vibration dust: Main brush X1+side brush X4+fan x2+vibration dust x2

4. Walking and turning mode: Steering wheel

5. Drive mode: Pure electric rear wheel differential drive (AC asynchronous motor)

6. Braking method: Hydraulic dual disc brake

7. Power source: 48V 150AH (6 pieces) super maintenance free battery

8. Electric control circuit: National standard integrated waterproof wiring harness

9. Work control mode: Automatic control system, one click start

10. Battery charger: Equipped with intelligent charger

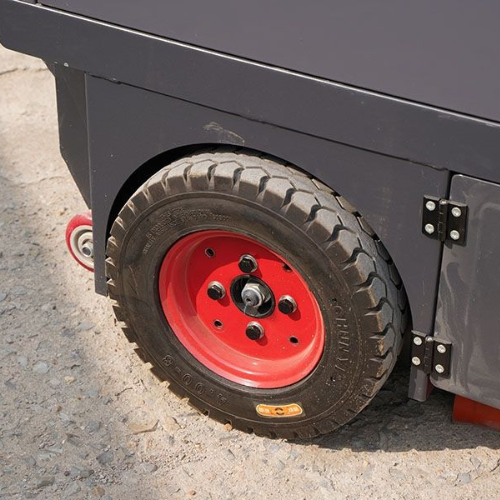

11. Tyre: Rubber solid tire

12. Cleaning width: ≤2000mm

13. Work efficiency: ≤18,000 m²/h

14. Battery life: 6-8h

15. Climbing ability: 35%

16. Maximum working speed: 8km/h

17. Maximum driving speed: 20km/h

18. Water tank capacity: 200L

19. Garbage bin capacity: ≤260L

20. Edge brush diameter: 500mm

21. Main brush specifications: 800mm*350mm

22. Drive power: 2.2kw

23. Homework power: 1000W (main brush)+500W (fan) X2+100W (vibration dust) X2+100W (edge brush) X4+50W (water pump)

24. Turning radius: 1200mm

25. Specification and size: Length X width X height=2650*2000*2550mm

26. High pressure pump power: 1.5kw

27. Maximum working flow rate: 8L/min

28. Maximum work pressure: 13Mpa

29. High pressure pipe length: 10m, imported high-pressure pipe

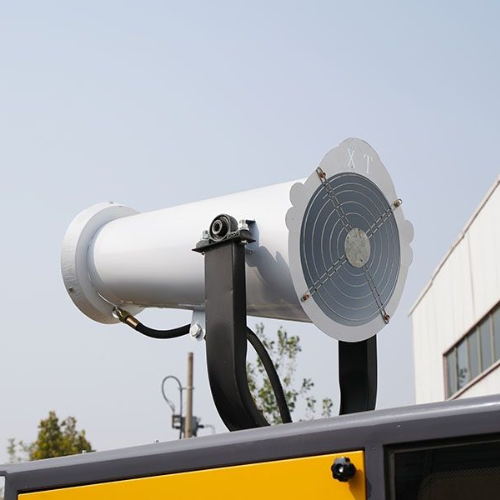

30. The working power of the fog cannon comes from the high-pressure flushing machine pump: Range of 10M

31. Net weight of the machine: 1200Kg
