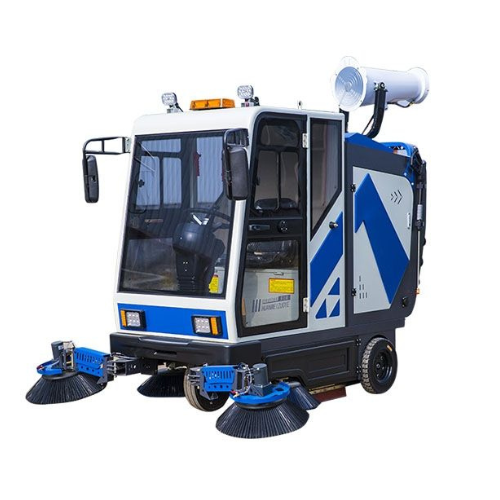

SRXS-A2PWS Sweeper Vehicle

SR/XSII-4LZX Sweeper Vehicle

1. A fully enclosed, driver-operated, four-wheel, high-power integrated machine featuring vacuum negative pressure dust collection, automatic sweeping, high-pressure washing, and a high-pressure mist cannon.

2. Driver-operated/rechargeable, combining dust collection, sweeping, and water spraying.

3. The SR/XSⅡ-4LW sweeper is an automatic integrated cleaning machine that combines dust collection, sweeping, water spraying, high-pressure washing, and a mist cannon.

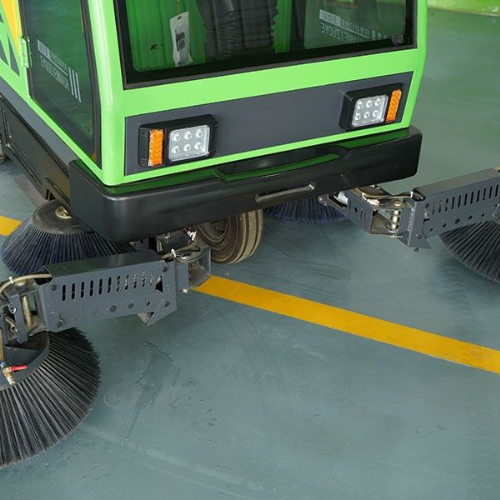

4. Front side brushes with automatic retraction/extension; a seven-brush configuration can be optionally installed.

Performance Features

1. Equipped with a dust control system, featuring a large filtration area and strong dust collection capability.

2. An integrated and enlarged chassis ensures stable product performance, high working efficiency, and a long machine lifespan.

3. A built-in large dust filtration system effectively suppresses dust, and an electric dust-cleaning vibrator can automatically clean dust from the filter.

4. Utilizes a high-pressure atomizing spray system to effectively prevent secondary dust dispersion.

6. Features a fully enclosed cabin, which is aesthetically pleasing and effectively prevents adverse conditions such as weather, noise, and sandstorms from affecting sweeping operations.

7. User-friendly product design provides users with a safe and comfortable working environment.

8. Solid, enlarged tires enhance the product's passability.

9. A mature and excellent electronic control system ensures product reliability and easy operation.

10. Powered by large-capacity, maintenance-free batteries, it is energy-saving, environmentally friendly, and offers long continuous working hours.

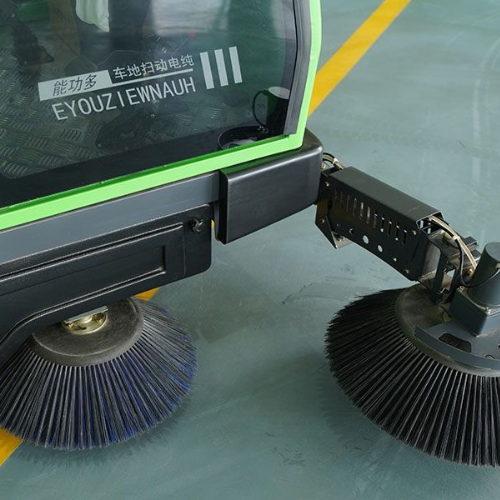

11.Both side brushes and the main brush are equipped with automatic lifting devices for quick and convenient operation.

Note: Parameter changes due to product modifications or upgrades will not be notified separately. We appreciate your understanding!

Technical Parameters

1. Product model: SR/XS-A2PWS

2. Shell material: Sheet metal spray coating

3. Number of brushes, fans and vibration dust: Main brush X1+side brush X4+fan x2+vibration dust x2

4. Walking and turning mode: Steering wheel

5. Drive mode: Pure electric rear wheel differential drive (AC asynchronous motor)

6. Braking method: Hydraulic dual disc brake

7. Power source: 48V 150AH (6 pieces) super maintenance free battery

8. Electric control circuit: National standard integrated waterproof wiring harness

9. Work control mode: Automatic control system, one click start

10. Battery charger: Equipped with intelligent charger

11. Tyre: Rubber solid tire

12. Cleaning width: Front brush automatic telescopic 1.5M-2.3M

13. Work efficiency: ≤20,000m²/h

14. Battery life: 6-8h

15. Climbing ability: 35%

16. Maximum working speed: 8km/h

17. Maximum driving speed: 20km/h

18. Water tank capacity: 200L

19. Garbage bin capacity: ≤260L

20. Edge brush diameter: Front: 550mm*2 Rear: 500*2

21. Main brush specifications: 800mm*350mm

22. Drive power: 2.5kw

23. Homework power: 1000W (main brush)+600W (fan) x2+100W (vibration dust) x2+120W (side brush) X4+50W (water pump)

24. Turning radius: 1200mm

25. Specification and size: Length*width*height=2750*2300*2450mm

26. High pressure pump power: 1.5kw

27. Maximum working flow rate: 8L/min

28. Maximum work pressure: 13Mpa

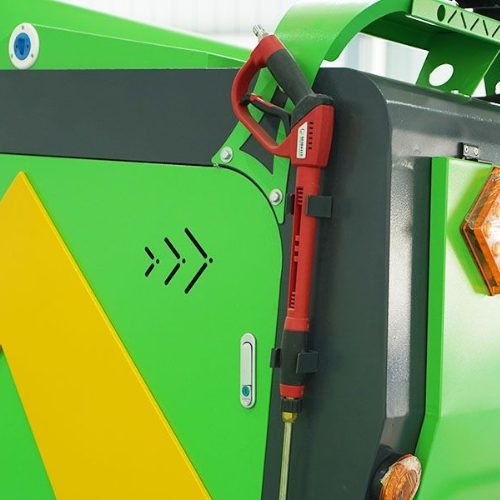

29. High pressure pipe length: 10m, imported high-pressure pipe

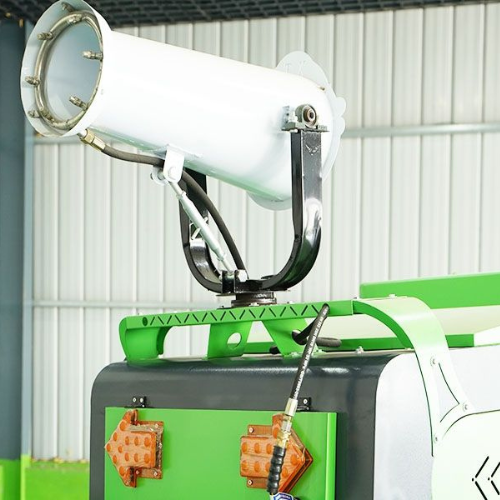

30. The working power of the fog cannon comes from the high-pressure flushing machine pump: Range of 10M

31. Net weight of the machine: 1,200Kg
