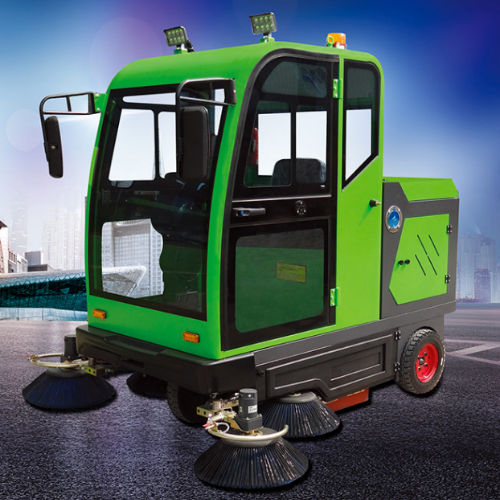

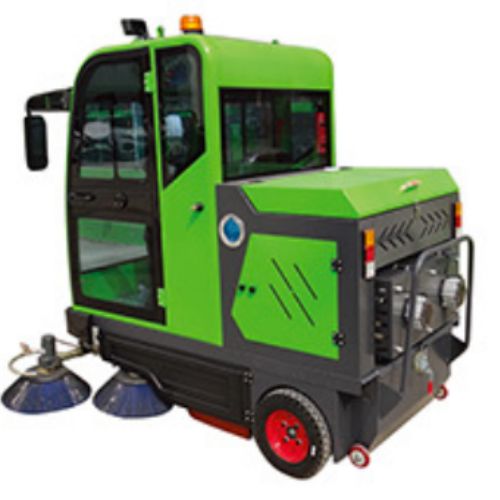

SRQF-A1P Road Sweeper

SR/QF-A1P

1. Fully Enclosed Driver-Operated Triple-Wheel Dual-Fan Low-Power Vacuum Negative Pressure Automatic Sweeper

2. Driver-Operated Sweeper, an integrated automatic cleaning machine combining vacuuming, sweeping, and water spraying.

Performance Features

1. Equipped with a powerful dust control system, featuring a large filter area and strong dust collection capability.

2. The integrated enlarged chassis ensures stable product performance, high working efficiency, and a long machine lifespan.

3. A built-in large-scale dust filtration system effectively suppresses dust, and an electric dust-cleaning vibrator automatically cleans dust from the filter.

4. Utilizes a high-pressure atomizing spray system to effectively prevent secondary dust generation.

5. Features a fully enclosed cab, which is aesthetically pleasing and effectively mitigates the impact of adverse conditions like weather, noise, and sand on sweeping operations.

6. The humanized product design concept provides users with a safe and comfortable working environment.

7. Solid enlarged tires enhance the product's passability.

8. A mature and high-quality electronic control system ensures product reliability and easy operation.

9. Powered by a large-capacity maintenance-free battery, it is energy-saving, environmentally friendly, and offers a long continuous working time.

10. Both the side brushes and main brush feature automatic lifting devices, making them quick and convenient to use.

11. Dual fans, dual filter elements, and dual dust shakers ensure better sweeping results and an enhanced user experience.

Note: Parameter changes due to product modifications or upgrades will not be notified separately. We appreciate your understanding!

Technical Parameters

1. Product model: SR/QF-A1P

2. Shell material: Sheet metal baking paint

3. Number of brushes, fans, and vibration dust: Main brush X1+side brush X4+fan x2+vibration dust x2

4. Walking and turning mode: Steering wheel

5. Drive mode: Pure electric rear wheel differential drive (DC asynchronous motor)

6. Braking method: Hydraulic dual disc brake

7. Power source: Optional 48V 150AH (6 pieces) or 48V 80AH (4 pieces) ultra maintenance free batteries

8. Electric control circuit: National standard integrated waterproof wiring harness

9. Work control mode: Automatic control system, one click start

10. Battery charger: Equipped with intelligent charger

11. Tyre: Rubber solid tire

12. Cleaning width: ≤2,000mm

13. Work efficiency: ≤18,000m²/h

14. Battery life: 4-8h

15. Climbing ability: 30%

16. Maximum working speed: 8km/h

17. Maximum driving speed: 20km/h

18. Water tank capacity: 60L

19. Garbage bin capacity: ≤260L

20. Edge brush diameter: 500mm

21. Main brush specifications: 800mmX350mm

22. Drive power: 1.5KW

23. Homework power: 1000W (main brush)+500W (fan) X2+100W (vibration dust) X2+100W (edge brush) x4+50W (water pump)

24. Turning radius: 1200mm

25. Specification and size: Length X width X height=2350*2000*2100mm

26. Net weight of the machine: 990kg
