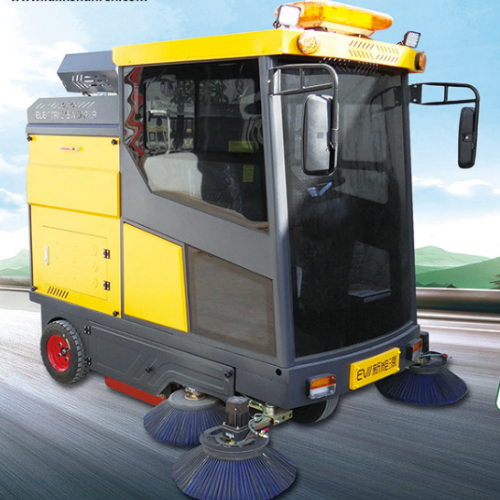

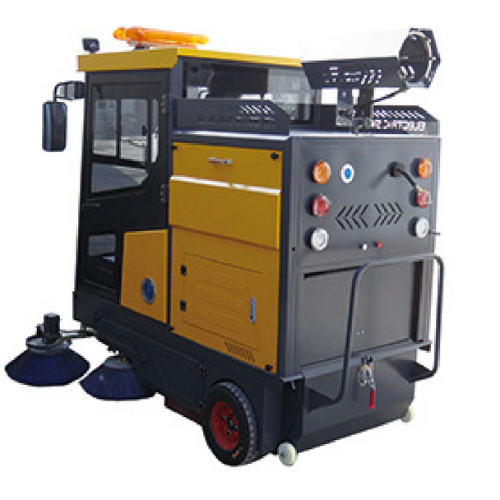

SRLH-A1 Road Sweeper

Performance Features

1. The drive system of this sweeper model utilizes a high-power 1.5kW DC asynchronous motor and a DC asynchronous intelligent controller. Its primary advantages include smooth startup, quiet operation, powerful performance, strong climbing capability, and a long service life, all of which contribute to an excellent user experience and enhanced ease of operation.

2. This vehicle features an integrated sweeping and vacuuming design. Four front-mounted side brushes are responsible for gathering debris from the sweeping path, while a central main brush sweeps and throws debris. It incorporates two sets of built-in high-power vacuum negative pressure dust collection systems, equipped with two 500W high-speed vacuum fans. Automatic dust collection is performed through two large-area filter elements, which can also be automatically cleaned with a single button. Combined with a high-pressure atomizing spray system, it effectively suppresses airborne dust and ensures a thorough cleaning of ground debris and dust.

3. This model also incorporates a high-pressure cleaning function, featuring a pure electric imported high-pressure plunger pump and an automatic hose reel that allows for a 10-meter high-pressure hose to be extended. The high-pressure system is equipped with standard quick connectors, enabling the use of various nozzles with different calibers and spray angles. A selection of nozzles is included with the machine.

Note: Parameter changes due to product modifications or upgrades will not be notified separately. We appreciate your understanding!

Technical Parameters

1. Product Name: SRLH-A1

2. Shell material: Sheet metal spray coating, UV resistant tempered glass

3. Scan quantity: Main brush X1+side brush X4

4. Number of fans: 500W fan x1

5. Quantity of vibration dust: 100W vibration dust x1

6. Walking and turning mode: Steering wheel

7. Drive mode: Pure electric rear wheel differential drive (DC asynchronous motor)

8. Braking method: Hydraulic dual disc brake

9. Power source: Total voltage 48V; 103AhX4 TianNeng maintenance free battery

10. Electric control circuit: National standard integrated waterproof wiring harness

11. Work control mode: Automatic control system, one click start

12. Battery charger: Equipped with intelligent charger

13. Tyre: Rubber solid tire

14. Cleaning width: ≤2,000mm

15. Work efficiency: ≤18,000 m²/h

16. Battery life: 3-5h

17. Climbing ability: 35%

18. Maximum working speed: 8km/h

19. Maximum driving speed: 20km/h

20. Water tank capacity: 150L

21. Garbage bin capacity: ≤260L

22. Edge brush diameter: 500mm

23. Main brush specifications: 800mm*350mm

24. Main brush motor power: 1000W

25. Edge brush motor power: Brushless motor 100WX4

26. Drive power: 1.5Kw

27. Homework power: 1000W (main brush)+500W (fan)+100W (vibration dust)+100W (side brush) X4+50W (water pump)

28. Turning radius: 1200mm

29. Specification and size: Length X width X height=2450*2000*2150mm

30. High pressure pump power: 1.5kw

31. Maximum working flow rate: 8L/min

32. Maximum work pressure: 13Mpa

33. High pressure pipe length: 10m, imported high-pressure pipe

34. The working power of the fog cannon comes from the high-pressure flushing machine pump: Range of 10M

35. Machine weight: 1050Kg
