SR1800-A1 Road Sweeper

SR1800-A1

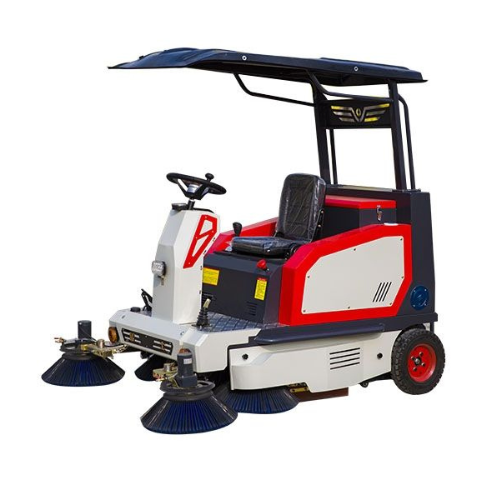

Ride-on Three-wheeled Vacuum Suction Automatic Sweeper

Ride-on / Rechargeable / Combines vacuuming, sweeping, and water spraying

Performance Features

1. The walking drive of this type of sweeper adopts a 1.2kw DC asynchronous motor and a DC asynchronous motor intelligent controller. Its main advantage is a smooth start.

2. Noiseless operation, strong power, strong climbing ability and long service life, providing users with a good product experience and increasing the ease of operation of the product.

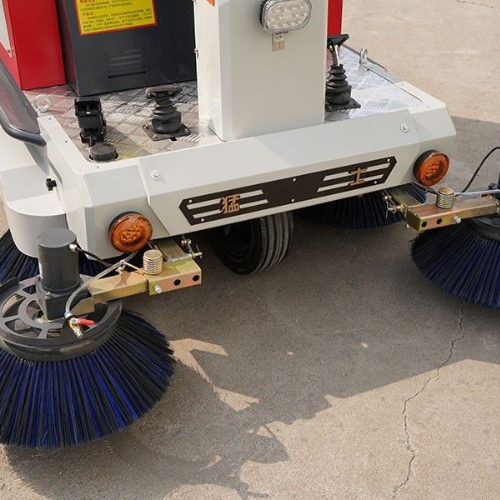

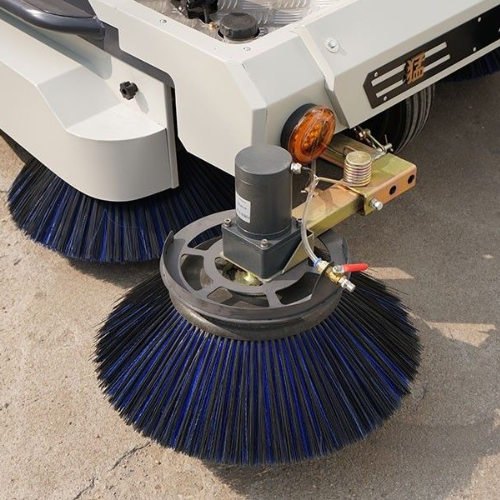

3. The vehicle is designed with integrated suction and sweeping. The four front side brushes are responsible for collecting the garbage in the cleaning area, and the central main brush is responsible for cleaning and discarding garbage. It has two built-in high-power vacuum negative pressure suction systems, equipped with two 800W high-speed vacuum fans, which can automatically vacuum through two large-area filter elements, and can automatically clean the filter element with one click. Combined with the high-pressure atomizing spray system, it can effectively suppress dust and thoroughly clean garbage and dust on the ground.

Note: Parameter changes due to product modifications or upgrades will not be notified separately. We appreciate your understanding!

Technical Parameters

1. Product model: SR1800-A1

2. Shell material: Sheet metal spray coating

3. Number of brushes, fans, and vibrations: Main brush X1+side brush X4+fan (high power) x2+vibration dust x2

4. Walking and turning mode: Steering wheel

5. Drive mode: Pure electric rear wheel differential drive

6. Braking method: Hydraulic dual disc brake

7. Power source: 48V 80AH (4 pieces) super maintenance free battery

8. Electric control circuit: National standard integrated waterproof wiring harness

9. Work control mode: Automatic control system, one click start

10. Battery charger: Equipped with intelligent charger

11. Tyre: Rubber solid tire

12. Cleaning width: ≤1,800mm

13. Work efficiency: ≤16,000m²/h

14. Battery life: 6-8h

15. Climbing ability: 35%

16. Maximum working speed: 10km/h

17. Maximum driving speed: 20km/h

18. Water tank capacity: 40L

19. Garbage bin capacity: ≤200L

20. Edge brush diameter: 500mm

21. Main brush specifications: 700mm*300mm

22. Drive power: 1,200W

23. Homework power: 1000W (main brush)+800W (fan)*2+100W (vibration dust)*2+100W (edge brush)*4+50W (water pump)

24. Turning radius: 1300mm

25. Specification and size: Length*width*height=2300*1800*1900mm

26. Net weight of the machine: 660Kg
