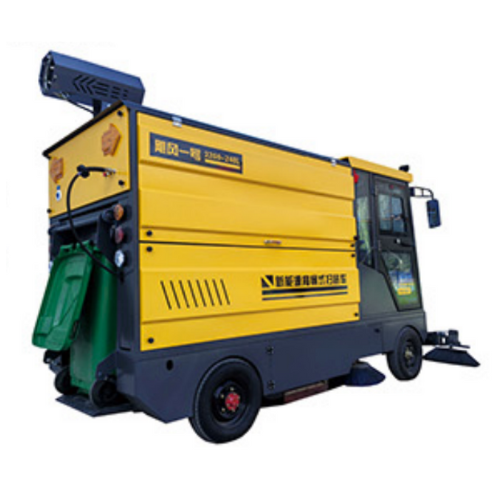

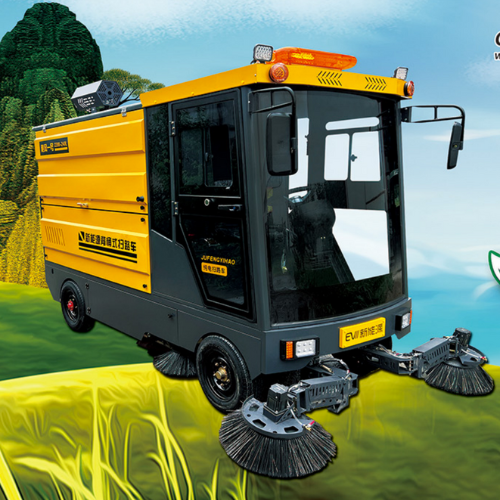

SR2200-240L Sweeper Vehicle

Technical Parameter

1. Product model: SR2200-240L

2. Shell material: Sheet metal spraying, tempered glass

3. Scan quantity: Edge brush X4

4. Number of fans: Centrifugal high air volume X2

5. Walking and turning: Unique steering structure of steering wheel

6. Drive mode: Pure electric rear wheel differential drive (AC asynchronous motor)

7. Braking method: Hydraulic dual disc brake

8. Power source: Total voltage 45V; 6V200AH (8 pieces) daily maintenance free battery

9. Electric control circuit: National standard integrated waterproof wiring harness

10. Work control mode: Automatic control system, one click start

11. Battery charger: Equipped with intelligent charger

12. Tyre: Radial vacuum tire

13. Cleaning width: Front brush automatic expansion width: 1.5M-2.2M

14. Work efficiency: ≤22000 m/h

15. Continuous working hours: 6-8h

16. Climbing ability: <35%

17. Maximum working speed: 8km/h

18. Maximum driving speed: 15km/h

19. Water tank capacity: 400 pounds

20. Garbage bin capacity: Standard 240L trash can

21. Filter element and vibration dust: Dual fan dual vibration dust

22. Edge brush diameter: 550mmX2

23. Edge brush motor power: Brushless motor 120Wx4

24. Drive power: 5kw

25. Homework power: 100M (train bus) XH-100M (conveyor belt 120M side brush) XH-50M (water pump)

26. Turning radius: 2500mm

27. Appearance size: Length X width X height=3600 * 2200 * 2260mm

28. High pressure pump power: 1.5kw

29. Maximum working flow rate: 8L/min

30. Maximum work pressure: 13Mpa

31. High pressure pipe length: 10m, imported high-pressure pipe

32. Fog cannon power and range: Power comes from high-pressure pump with a range of 10M

33. Hydraulic station power: 800W

34. Machine weight: 1650Kg

Performance Characteristics

1.Equipped with a high-power dust control system, featuring large filtration area and strong suction capacity.

2.Integrated enlarged chassis ensures stable performance, high work efficiency, and long machine service life.

3.Built-in large dust filtration system effectively suppresses dust; electric dust-cleaning vibrator automatically cleans the filter.

4.High-pressure atomized spray system effectively prevents secondary dust emission.

5.Fully enclosed cabin is aesthetically pleasing and protects the operator from adverse weather, noise, and dust during cleaning operations.

6.User-centered design philosophy provides a safe and comfortable working environment.

7.Large vacuum tires enhance the machine's passability over various terrains.

8.Mature and high-quality electronic control system ensures product reliability and ease of operation.

9.Powered by large-capacity maintenance-free batteries, offering energy efficiency, environmental friendliness, and extended continuous operation.

10.Both side brushes and main brush feature automatic lifting devices for quick and convenient operation.
