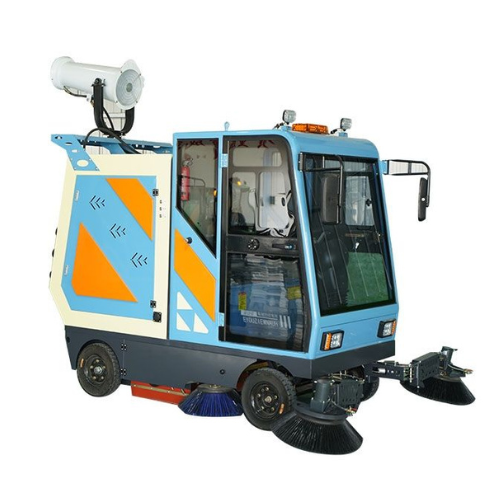

SRXSII-4LZX Sweeper Vehicle

SR/XSII-4LZX Sweeper Vehicle

1. Fully enclosed, driver-operated four-wheel, high-power vacuum negative-pressure suction automatic sweeper integrating high-pressure washing and a high-pressure fog cannon, with a dumpable waste hopper.

2. Driver-operated / battery-powered; combines vacuuming, sweeping and water spraying.

3. The Cheetah self-dumping sweeper is an integrated automatic cleaning machine combining vacuuming, sweeping, water spraying, high-pressure washing and a fog cannon.

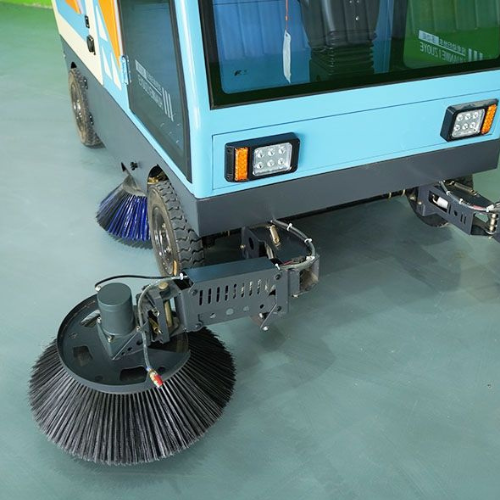

4. Front side brush with automatic telescoping.

Performance Features

1. Uses a powerful dust-control system with a large filtration area and strong suction capacity.

2. Integrated enlarged chassis for stable performance, high work efficiency and long machine life.

3. Built-in large dust filtration system effectively suppresses dust; an electric dust-cleaning vibrator can automatically clear filter dust.

4. Equipped with a high-pressure atomizing spray system to effectively prevent secondary dust dispersion.

5. Features a fully enclosed cab with an attractive appearance, and protects cleaning operations from adverse conditions such as weather, noise and sand/dust.

7. User-friendly design provides a safe and comfortable working environment.

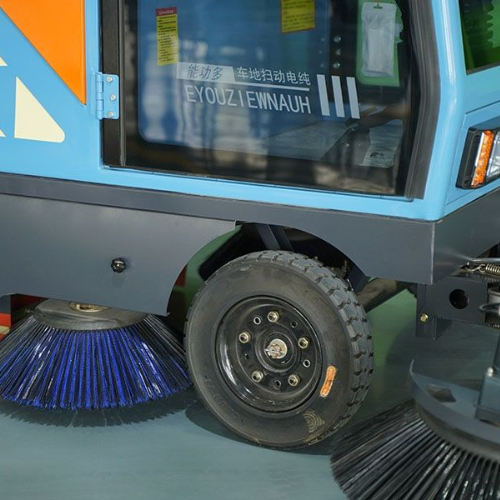

8. Solid oversized tires enhance the vehicle's ability to traverse rough terrain.

9. Mature, high-quality electronic control system ensures product reliability and ease of operation.

10. Powered by large-capacity, maintenance-free batteries; energy-saving, environmentally friendly, and capable of long continuous operation.

11. Both side and main brushes use automatic lifting devices for quick and convenient operation.

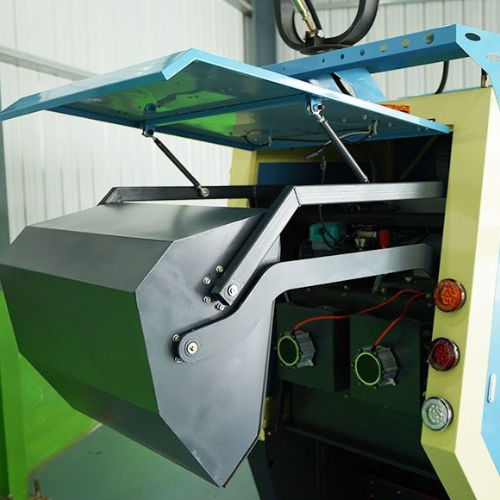

12. Hydraulic self-dumping hopper eliminates the hassle of frequent manual emptying of waste.

Note: Parameter changes due to product modifications or upgrades will not be notified separately. We appreciate your understanding!

Technical Parameters

1. Product model: SR/XSII-4LZX

2. Shell material: Sheet metal spray coating, UV resistant tempered glass

3. Scan quantity: Main brush x 1+side brush x 4

4. Number of fans: Split type 600W fan x 2

5. Quantity of vibration dust: 100W vibration dust x 2

6. Walking and turning: Unique steering structure of steering wheel

7. Drive mode: Pure electric rear wheel differential drive (AC asynchronous motor)

8. Braking method: Hydraulic dual disc brake

9. Power source: Total voltage 48V; 8V150AH (6 pieces) Ultra Micro Maintenance Free Battery

10. Electric control circuit: National standard integrated waterproof wiring harness

11. Work control mode: Automatic control system, one click start

12. Battery charger: Equipped with intelligent charger

13. Tyre: Solid high-quality rubber

14. Cleaning width: Front brush with second level anti-collision automatic telescope: width: 1.5M - 2.3M

15. Work efficiency: ≤20000 m²/h

16. Continuous working hours: 6-8h

17. Climbing ability: ≤35%

18. Maximum working speed: 8km/h

19. Maximum driving speed: 15km/h

20. Water tank capacity: 400L

21. Garbage bin capacity: ≤220L

22. Edge brush diameter: Front: 550mm x 2 Rear: 500 x 2

23. Main brush specifications: 820mm*400mm

24. Main brush motor power: 1000W

25. Edge brush motor power: 120Wx4

26. Drive power: 3kw

27. Homework power: 1000W main brush+600W fan x2+100W vibration dust x2+120W side brush x4+50W water pump

28. Turning radius: 2150mm

29. Self dumping height above ground: 1.2M

30. Power of self dumping hydraulic device: 800W

31. Filtering system: Special filtration system, optimized dust removal, waterproof performance

32. Appearance size: Length x width x height=3400*2300*2600mm

33. High pressure pump power: 1.5kw

34. Maximum working flow rate: 8L/min

35. Maximum work pressure: 13Mpa

36. High pressure pipe length: 10m, imported high-pressure pipe

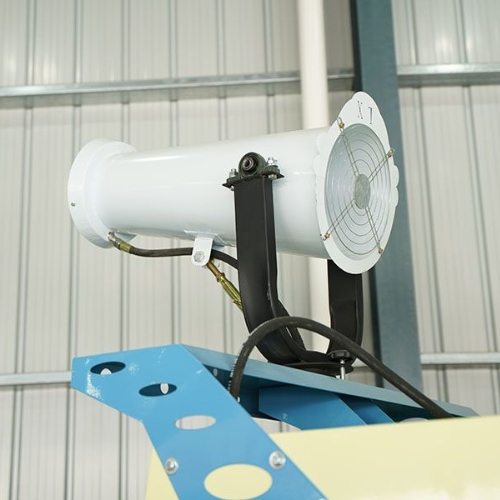

37. Fog cannon range: 10M

38. Net weight of the machine: 1300Kg
