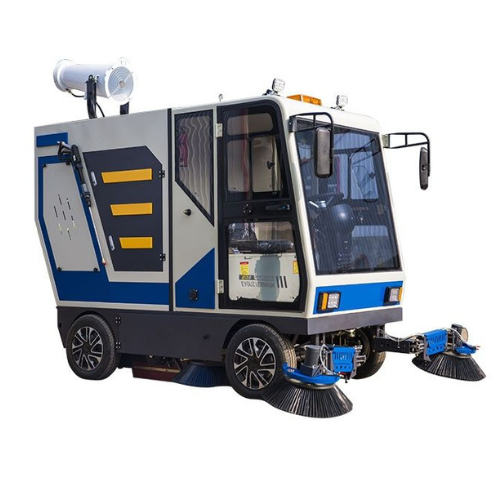

SRXSIII-4LW Sweeper Vehicle

Challenger 2 (SR/XS III-4LW) Sweeper Vehicle

1. Driving/rechargeable/combination of vacuuming, sweeping and water spraying

2. Fully enclosed driving-type four-wheel high-power vacuum negative pressure vacuum cleaner, automatic sweeping, high-pressure flushing and high-pressure fog cannon all-in-one machine

3. The four-wheel Challenger No. 2 sweeper is an automatic cleaning all-in-one machine that combines vacuuming, sweeping, and water spraying.

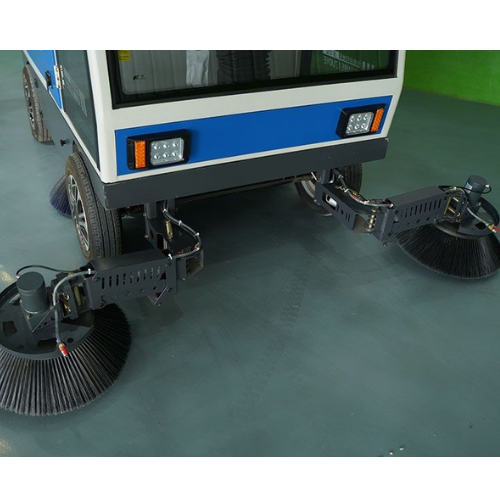

4. The front brush can be automatically retracted.

Technical Parameter

1. Product model: SR/XS III-4LW

2. Shell material: Sheet metal baking paint

3. Number of brushes, fans, and vibration dust: Main brush X1+side brush X4+fan x4+vibration dust x4

4. Walking and turning mode: Steering wheel

5. Drive mode: Pure electric rear wheel differential drive (AC asynchronous motor)

6. Braking method: Hydraulic dual disc brake

7. Power source: 48V 200AH (8 pieces) super maintenance free battery

8. Electric control circuit: National standard integrated waterproof wiring harness

9. Work control mode: Automatic control system, one click start

10. Battery charger: Equipped with intelligent charger

11. Tyre: Increase the size of vacuum tires

12. Cleaning width: The front brush automatically extends and retracts by 1.5m-2.3m

13. Work efficiency: ≤20000 m³/h

14. Battery life: 5-7h

15. Climbing ability: 35%

16. Maximum working speed: 8km/h

17. Maximum driving speed: 20km/h

18. Water tank capacity: 400L

19. Garbage bin capacity: ≤260L

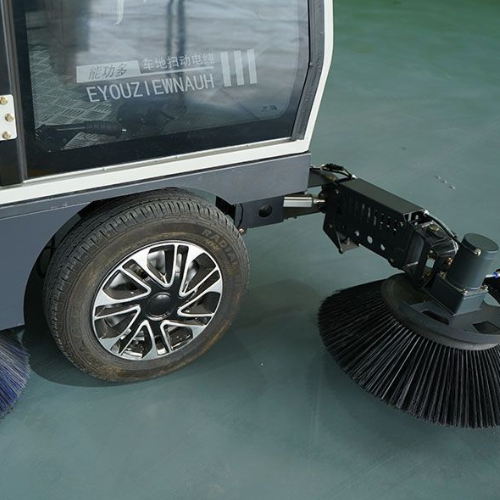

20. Edge brush diameter: Front: 600mmX2 Rear: 500X2

21. Main brush specifications: 820mmx400mm

22. Drive power: 4kw

23. Homework power: 1000W (main brush)+600W (fan) X4+100W (vibration dust) X4+120W (edge brush) X4+50W (water pump)

24. Turning radius: 2250mm

25. Specification and size: Length*width*height=3500*2300*2600mm

26. High pressure pump power: 1.5kw

27. Maximum working flow rate: 8L/min

28. Maximum work pressure: 13Mpa

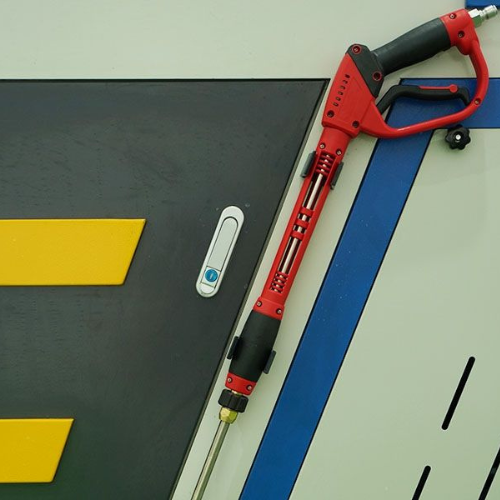

29. High pressure pipe length: 10m, imported high-pressure pipe

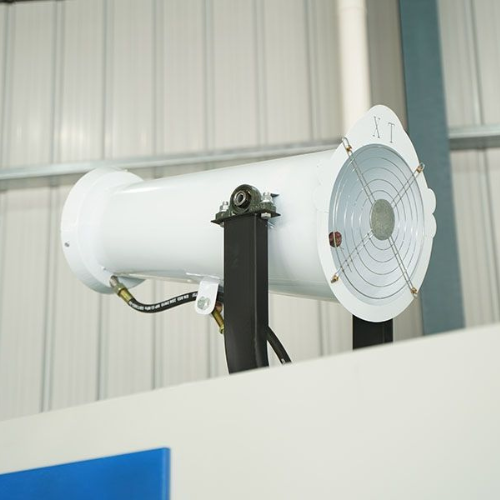

30. The working power of the fog cannon comes from the high-pressure flushing machine pump: Range of 10M

31. Net weight of the machine: 1600Kg

Performance Features:

1. Equipped with a powerful dust control system, featuring a large filtration area and strong suction capability.

2. Integrated enlarged chassis ensures stable product performance, high work efficiency, and extended machine lifespan.

3. Built-in large dust filtration system effectively suppresses dust, with an electric dust shaker automatically cleaning the filter.

4. High-pressure atomized spray system effectively prevents secondary dust dispersion.

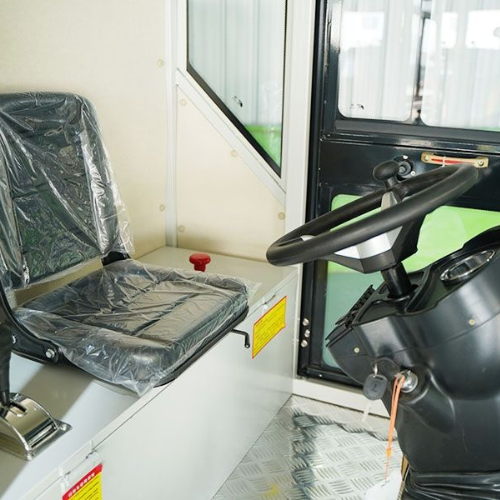

5. Fully enclosed cabin offers an elegant appearance while protecting against adverse weather, noise, and sand during operation.

6. Human-centered design philosophy provides a safe and comfortable working environment.

7. Enlarged vacuum tires enhance the product's maneuverability.

8. Mature and high-quality electronic control system ensures reliability and ease of operation.

9. Large-capacity maintenance-free battery as power source, offering energy efficiency, environmental friendliness, and long continuous operation.

10. Both side brushes and main brush feature automatic lifting mechanisms for quick and convenient use.

Note: Parameter changes due to product modifications or upgrades will not be notified separately. We appreciate your understanding!
